Misting Nozzle Flow Rates

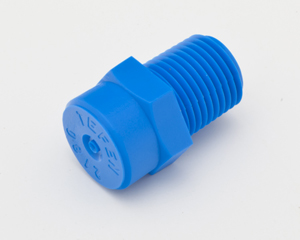

The flow rates of various plastic misting nozzles will vary from brand to brand. The following chart shows the flow rate of one of the more popular brands of misting nozzles. The flow rate of this particular line of misting nozzles is perfect for many industrial, and residential projects. From backyard outdoor cooling systems, to large commercial greenhouse humidification systems. They have a relatively low flow rate and produce very fine droplets measured in the microns.
| Misting Nozzle Color | Liter per Min. Bar 2 |
Liter per Min. Bar 3 |
Liter per Min. Bar 4 |
Liter per Min. Bar 6 |
|---|---|---|---|---|
| Red | 0.039 | 0.048 | 0.073 | 0.085 |
| Blue | 0.060 | 0.070 | 0.080 | 0.093 |
| Black | 0.108 | 0.132 | 0.152 | 0.190 |
| Cream | 0.063 | 0.075 | 0.086 | 0.108 |
| White | 0.039 | 0.048 | 0.073 | 0.085 |
| Gray | 0.043 | 0.053 | 0.060 | 0.069 |
| Misting Nozzle Color | Gallon per Min. 29 PSI |
Gallon per Min. 43 PSI |
Gallon per Min. 58 PSI |
Gallon per Min. 87 PSI |
|---|---|---|---|---|
| Red | 0.0095 | 0.0113 | 0.0119 | 0.0224 |
| Blue | 0.0153 | 0.0185 | 0.0211 | 0.0245 |
| Black | 0.0291 | 0.0370 | 0.0401 | 0.0501 |
| Cream | 0.0153 | 0.0185 | 0.0227 | 0.0285 |
| White | 0.0095 | 0.0113 | 0.0119 | 0.0224 |
| Gray | 0.0116 | 0.0145 | 0.0158 | 0.0182 |
